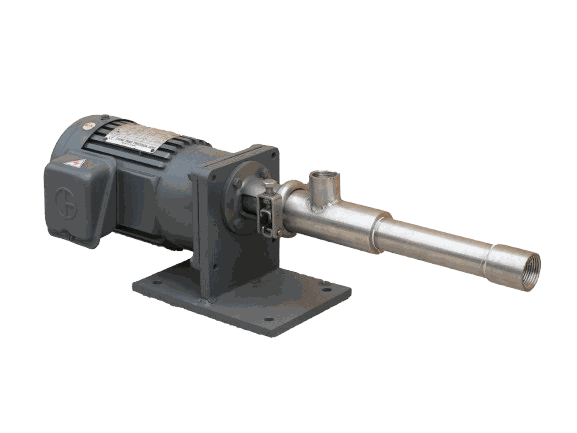

RV Series Micro Screw Pump

Miniaturized progressive cavity pump for accurate metering of small flows — stable, pulsation-free delivery even at very low speed.

Inquire

Scope of Application

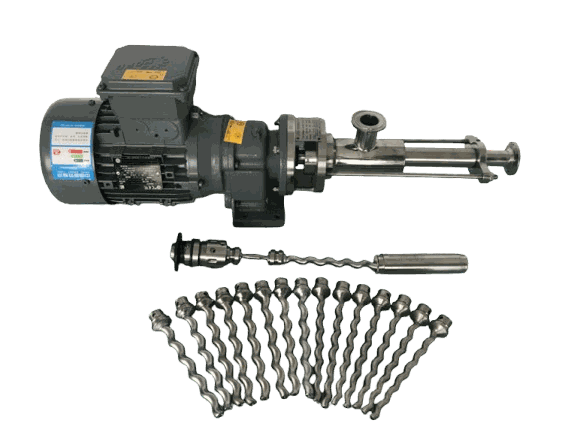

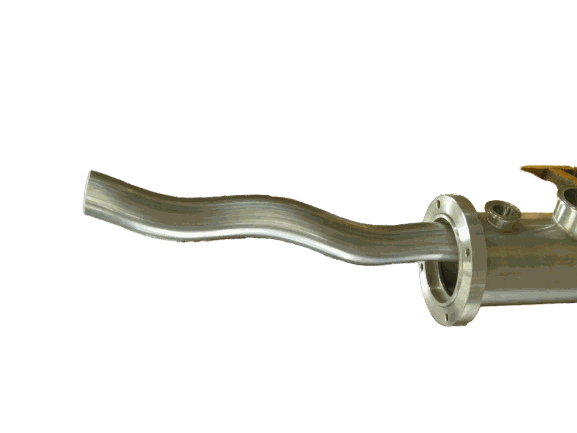

The structure of the pump is designed to facilitate the replacement of the rotor, stator and liquid contact parts.

The axial size is small, 1/3–1/2 shorter than the pump of general structure, and the pump tends to miniaturization.
Low temperature effect, low working torque.
Self-priming ability is strong, up to 7–8 m; even at very low speed, the flow is stable. Usually used as a dosing pump.
Low energy consumption, suitable for making micro-pump — even a 40 W motor can work normally.
No pulsation, uniform flow, measuring accuracy is better than ±1%, suitable for the accurate measurement of small flow.
Simple maintenance and low cost. Easy to install and move.

Type	Head (MPa)	Flow (L/h) / Speed (rpm)				Power (kW)
Type	Head (MPa)	100 rpm	200 rpm	300 rpm	400 rpm	Power (kW)
RV0.4.3	1.8	4.5	9	15.5	18	0.25
RV0.8.3	1.8	9	18	27	36	0.37
RV1.5.3	1.8	16.8	33.6	50.4	67.2	0.37
RV3.2	1.2	33.7	67.4	101.1	144.8	0.55
RV6.2	1.2	67.5	135	202.5	270	0.55
RV12.2	1.2	135	270	405	540	0.55
